Asynchronous programming

As you work on JavaScript projects, sooner or later you are going to encounter the term 'asynchronous'. The aim of this module is to get you up to speed on what this term means, as well as look at some of the patterns that we can use to work with asynchronous code.

NOTE: Because of the contrived nature of asynchronous programming, we will need to isolate examples from each other. For this purpose, you will see examples wrapped in functions. The wrapper functions serve no other purpose than isolation.

Before we go into the concrete examples, I'm going to tell you a story.

The salad people never wait

Once upon a time, there were three hungry people. Their names were Bob, Mary, and Jane.

One day, they ran into a restaurant. In the restaurant, there was a counter where people can order food, and some tables. The three hungry people decided to go inside and have a meal.

The restaurant was one of those first come first serve places run by the manager, Mr. Block.

Bob walked in first, and ordered a sandwich. The cashier told him to hold on until the food is ready. It would only take about 3 minutes to prepare the meal, so Bob decided to wait it out.

Mary walked in immediately after bob. She, too, wanted a sandwich, but Bob was still waiting at the counter. She had no choice but to wait in line behind Bob.

Jane walked in last looking for some salad. She could see the salad bowl behind the counter, but Bob and Mary were already in the queue. Jane complained to Mr. Block, but was politely asked to wait for her turn.

Jane got annoyed and walked out. Seeing that, Mary also walked out.

The store owner saw this, and fired Mr. Block on the spot. He posted an ad for the new restaurant manager, and hired Mr. Defer a few days later.

Mr. Defer, the new manager, decided to do things a bit differently. He had a bench placed next to the counter, and trained the employees to ask the customers to sit and wait for the order, allowing the next customer to walk up to the counter and order their food while previous customers are waiting. Mr. Defer also introduced an new rule. Salad customers would not have to wait on the bench, because they could be served immediately.

Next day, Bob, Mary, and Jane, were walking down the street and saw that the restaurant was now run by a different person. Despite the bad experience they had last time, they agreed to give the place a second chance.

Bob walked in first again, and ordered his sandwich. This time he was offered a seat on the cozy bench while the meal was being prepared.

Mary walked in next, and also ordered a sandwich. She sat next to Bob to wait for the cashier to call her name.

Jane walked in last. To her surprise, she was served the salad immediately, and went straight to one of the empty tables to enjoy her lunch.

After about 3 minutes, both Bob's and Mary's sandwiches were ready, so they went to the counter, one by one, to pick them up and pay.

The three hungry people sat at the table and talked about how great things have gotten since Mr. Defer was put in charge.

Everyone was happy, and the restaurant made a lot of money.

Later, during the lunch hour rush, 40 more customers came into the restaurant. It was a salad frenzy day, and only a handful of customers wanted sandwiches. Bob was in the first again, and ordered a sandwich, but there were 30-someting people ordering salads after him. One by one, salads got served, while Bob was sitting idly on the bench.

3 minutes were up, but there were still 3 people waiting to get salads, and a few more people wanting a sandwich. The cashier served the 3 salad customers, and took the order from the sandwich customer. As the sandwich person was walking away from the counter, the cashier finally got the chance to serve Bob.

Bob was not the happiest person on the planet this time, but such are the rules: salad people don't wait on the bench.

Enough about the food, you're making me hungry!

OK, back to JavaScript.

Let's actually code the restaurant examples. We will first code the one that was run by Mr. Block, and then the other one, run by Mr. Defer.

Block's restaurant

Mr. Block's restaurant was slightly simpler. It had less rules:

• You come to the counter and order the food
• You wait for the food
• You pay and eat

const blockRestaurant = nextExample => {
  NOTE('Mr. Block restaurant')

  const ORDER_TIMES = {
    carbonara: 1500,
    sandwich: 300,
    salad: 0
  }

  const prepareOrder = order => {
    const time = ORDER_TIMES[order]
    if (time === 0) {
      console.log(`${order} is already prepared`)
    } else {
      console.log(`Preparing ${order}, ETA: ${time}`)
      const start = (new Date).getTime()
      while ((new Date).getTime() - start < time) {
        // Cooking
      }
      console.log(`${order} is ready!`)
    }
  }

  const takeOrder = (name, order) => {
    console.log(`${name} ordered ${order}`)
    prepareOrder(order)
    console.log(`${name} received their ${order}`)
  }

  takeOrder('Bob', 'carbonara')
  takeOrder('Mary', 'sandwich')
  takeOrder('Jane', 'salad')

  nextExample()
}

The output from the above example looks like this:

NOTE: Mr. Block restaurant
Bob ordered carbonara
Preparing carbonara, ETA: 1500
carbonara is ready!
Bob received their carbonara
Mary ordered sandwich
Preparing sandwich, ETA: 300
sandwich is ready!
Mary received their sandwich
Jane ordered salad
salad is already prepared
Jane received their salad

The code is more or less straightforward. There are two functions. The takeOrder() function takes the order, logs what order has been taken, then invokes the prepareOrder() function which prepares the order, and finally logs that the order has been served. The prepareOrder() function will first look up the time it needs to prepare the order, and it will then start a while loop, wait for the timer to ring, and then deliver the order.

All of the code in the example is what we call 'synchronous' code. It means that the JavaScript engine will execute statements one by one. It is simple, but there's one problem with this. If you look at what the while loop is doing, you will notice that it is not doing anything. The sole purpose of the wile loop is to block the execution until the time's up. So wasteful!

Mr. Defer's restaurant

Now let's take a look at Mr. Defer's restaurant.

It was a bit more complicated when it comes to rules:

• You come to the counter and order the food
• If you order a salad, you don't have to wait
• If you order something other than a salad, you wait until you're called to pick your order up
• While you are waiting, other customers can still order food
• When you are called back to the counter, you pay and eat

const deferRestaurant = nextExample => {
  NOTE('Mr. Defer restaurant')

  const ORDER_TIMES = {
    carbonara: 1500,
    sandwich: 300,
    salad: 0
  }
  let ordersTaken = 0;

  const prepareOrder = (order, whenReady) => {
    const time = ORDER_TIMES[order]
    console.log(`Preparing ${order}, ETA: ${time}`)
    setTimeout(whenReady, time)
  }

  const takeOrder = (name, order) => {

    console.log(`${name} ordered ${order}`)
    if (order === 'salad') {
      console.log(`${name} does not have to wait`)
      return
    }

    ordersTaken++

    const serve = () => {
      console.log(`${name}'s ${order} is ready`)
      ordersTaken--
      if (!ordersTaken) {
        console.log('No more orders to serve, moving to next example')
        nextExample()
      }
    }

    prepareOrder(order, serve)
  }

  takeOrder('Bob', 'carbonara')
  takeOrder('Mary', 'sandwich')
  takeOrder('Jane', 'salad')
  console.log('All orders taken')
}

The output of the above example looks like this:

NOTE: Mr. Defer restaurant
Bob ordered carbonara
Preparing carbonara, ETA: 1500
Mary ordered sandwich
Preparing sandwich, ETA: 300
Jane ordered salad
Jane does not have to wait
All orders taken
Mary's sandwich is ready
Bob's carbonara is ready
No more orders to serve, moving to next example

Before we discuss the details of the implementation, let's first talk about the setTimeout() function. This function is asynchronous. In other words, it tells the JavaScript engine to wait in background, and once the wait is finished, execute a callback function that we pass it. This pattern is exactly the same as any asynchronous operation that we would normally perform in real life, including AJAX or HTTP requests, database queries, filesystem operations, and so on.

The second example is no doubt a bit more complex than the first one, but let's carefully break it down and analyze what it does.

The new prepareOrder() function takes the order name, and a whenReady function that should be called when the order is ready. Instead of using a while loop, it now uses setTimeout() to simulate asynchronously preparing the meal without blocking code from running while the preparation is ongoing.

The takeOrder() function will take the order, as well as the customer's name. We need to name so we know whom to call when the meal is ready. It takes care of salad orders immediately. For all other orders, it will increment the ordersTaken counter to keep track of unfulfilled orders.

A new function serve() is defined, which will decrement the counter and serve the customer. This function is called a 'callback' because it is used by another function to 'call us back' when an asynchronous operation is finished. This callback function is passed to prepareOrder() as the whenReady argument.

When finally call takeOrder() with the three orders. When Bob's order is placed, a prepareOrder() call is made, and Bob has to wait until serve() is called for his order. The ordersTaken is incremented by one. The same is true for Mary's order. However, Jane's order does not result in an asynchronous call. For her, the order is served immediately without requiring a callback. After Jane's order is fulfilled, it takes a while until Mary's order is done, and the serve() is called. The ordersTaken is decremented by one, and has the value of 1. When Bob's order is finally served, the ordersTaken is again decremented, and is now 0. This causes serve() to also conclude that there are no more orders and we can go to the next example.

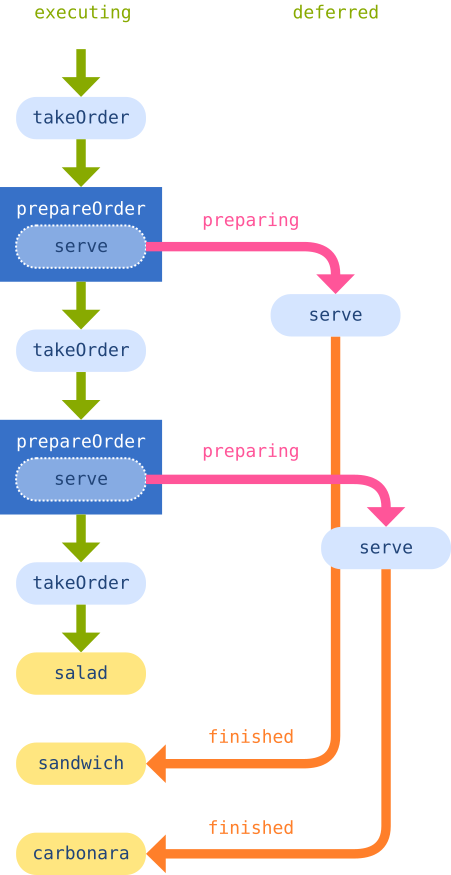

Let's take a look at a diagram, which will hopefully make this a bit clearer:

The green arrow represents a sequence of synchronous statements. If you are wondering why prepareOrder() is counted among the synchronous statements, it is because it is a synchronous statement that starts an asynchronous operation. The same is true for the setTimeout(). We called it an 'asynchronous function' before, but that was describing the nature of what it does internally rather than the semantics in the code.

Purple arrows represent the asynchronous operations that are going on outside the chain of statements that are currently executing. (The length of the arrow does not represent anything.) The orange arrow represents the continuation, which is when the callback code for the completed asynchronous task is scheduled to run next.

A bit of technical background

JavaScript engines are single threaded. If you don't know what threads) are, imagine the analogy of solving Mr. Block's problems by adding more counters instead of a bench for customers to wait on. In other words, JavaScript is limited to a single counter.

JavaScript has a single thread with non-blocking I/O. This means that requests for I/O operations (file access, database operations, AJAX/HTTP requests) are sent to the operating system (or browser), and the main thread is free to continue until the operating system responds back with the results. The code that orchestrates all this is called an event loop.

This design makes a lot of sense in the environment where JavaScript grew up, which is the browser. At any time, user-initiated events may come in and handling of such events must be scheduled as soon as possible.

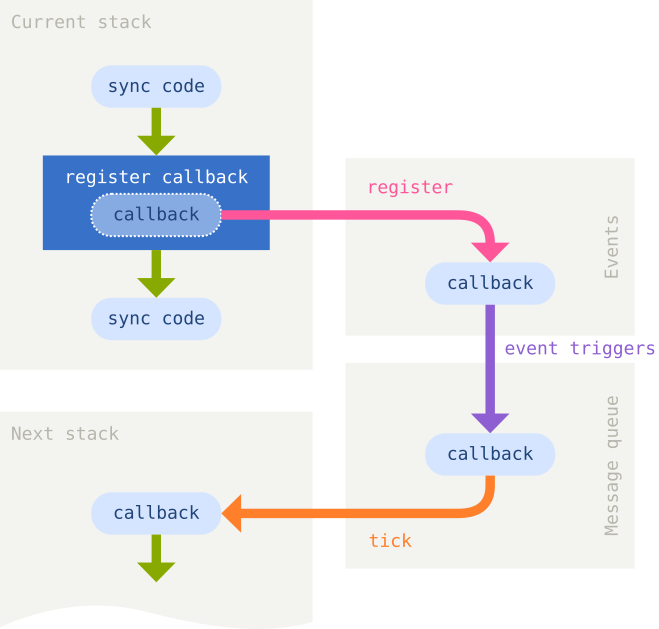

The following diagram shows how the event loop works.

At any given time there is a stack of functions that needs to be run. When a function is invoked, a new frame is created on the stack, and when a function returns, the frame is removed from the stack. Stacks are run to completion, until all frames return.

Within the same stack there could be calls that register callbacks for events. setTimeout() for example registers a callback for a timer event. At that point, the callback function and the event for which it is being registered are sent out to the runtime and registered (purple arrow). As soon as registration is completed, the stack is resumed, and executed to the end.

When an event is triggered (e.g., user clicks a button in the browser, or a file operation completes), a matching callback that is registered for the event is put into a message queue (violet arrow).

Every time the current stack completes, a tick occurs, where the runtime takes the message from the message queue, and calls the callback (orange arrow). This crates a new stack, which must run to completion.

Rinse and repeat.

Run to completion

As we mentioned, a stack must run to completion. Once a function is called, there is no way to interrupt it. It can either return, or terminate with an exception. While a stack is executed, no ticks can happen.

This property is easy to demonstrate.

const nextTickDemo = nextExample => {
  NOTE('Next tick demo')

  setTimeout(() => {
    console.log('Run me after 0s')
    nextExample()
  }, 0)

  const start = (new Date).getTime()
  while ((new Date).getTime() - start < 1000) {
    // Just wait for it
  }
  console.log('Run me after 1s')
}

The output from the above function looks like this:

NOTE: Next tick demo
Run me after 1s
Run me after 0s

Even though we have scheduled the setTimeout() callback to run after 0 milliseconds, it was invoked after more than 1 second. The reason for this is that the while loop is part of the current stack, and it kept blocking for a second, so the callback that was scheduled had to wait for the blocked stack to finish.

There are two important lessons here.

One lesson is that you should not consider the time you pass to setTimeout() (and also setInterval()) as exact time until callback is invoked. This value only means that the callback will not be added to the message queue until this time is up, and after that it all depends on when the next tick happens.

Another thing is that the stack should never keep busy for too long. As long as the stack is executing, a tick does not happen, and the queued callbacks cannot be processed. This rule is valid across all stacks created in your program, regardless of its size and complexity.

If you have a web server that is taking 10k requests, and you block for 30 seconds in the very first stack, this holds 10k requests up for 30 seconds! The whole idea of achieving high performance and concurrency using event loops hinges on keeping your stacks as quick as possible.

If you need to do a lot of computing that does not involve asynchronous I/O (and would therefore cause the stack to return late), you cannot do that in the main thread (solving this problem is outside the scope of this module, but you might want to read about web workers).

Callbacks are on their own stack

It's important to keep in mind that callbacks are called on their own stack.

This is best demonstrated by an example:

const separateStack = nextExample => {
  NOTE('Callbacks are on separate stack')

  let x = 0

  setTimeout(() => {
    x++
    console.log('(next stack) x =', x) // 1
    nextExample()
  }, 0)

  console.log('(current stack) x =', x) // 0
}

In the example, we increment x within the callback, but the value of x logged within the current stack is still 0. This is because the callback will not be called until the current stack is finished.

Another interesting observation we can make based on this example is that the closure of the callback is retained, so the callback is able to access the x variable even though it is defined on a separate stack.

Return values of the callback functions

Callback functions cannot return to the caller on the current stack. Even though the setTimeout() function has a return value (a Timeout object that can be used to cancel the timeout), there is no way for us to obtain the return value of the callback, ever.

If you look at the event loop diagram again, you will see that there is a gap between the two stacks, and no green arrows between the last statement in the current stack, and the first statement in the next stack. In other words, execution continues with the callback. This is sort of like turning a page in a book: you remember the last sentence on the previous page in your head, but you cannot see it.

To clarify the last paragraph, consider this code:

const syncWorkflow = nextExample => {
  NOTE('Synchronous workflow')

  function add(x, y) { return x + y }
  var i = add(2, 3)
  console.log('i =', i) // 5
  nextExample()
}

In the above code, we call add(). When add() returns, the execution continues from the point where add() returned, and proceeds with assigning the return value to i, and so on.

What if add() were asynchronous?

const asyncWorkflow = nextExample => {
  NOTE('Asynchronous workflow')

  function add(x, y, callback) {
    setTimeout(() => {
      callback(x + y)
    }, 0)
  }

  add(3, 8, i => {
    console.log('i =', i) // 11
    nextExample()
  })
}

Since the callback will be called in the next stack, we need a way to work with the result in the same stack as the callback. The solution pass the add() function our own callback which will receive the result. The setTimeout() callback will then invoke our callback once the result of the addition is known, and our callback function then continues with further work. You can think of it as wrapping in a function any unfinished business from the current stack, and passing that to the event callback to have the unfinished business resumed.

In other words, the stuff we did after var i = add(...) in the first example, becomes part of the callback function we pass to add(). The event loop will then arrange the code to run in the correct order.

This style of programming is also known as 'continuation passing style' (CPS), and the function we passed to add() is called 'continuation'.

Synchronization

Unlike in our small examples, the message queue can get quite busy in real world programs. It can become very difficult to reason about the order in which the callbacks are going to be fire, if not outright impossible. (In fact, you should generally not rely on making assumptions about the order.)

At the same time, there may be cases where order in which the callbacks are executed does matter.

In this section, we will take a look at two common scenarios, and how synchronizing the callbacks works.

Parallel: finish all asynchronous operations in any order

In this case, we may have several asynchronous operations that have a common continuation, but the order of operations does not matter. In other words, we just want to run a function when all operations are finished.

In the example code, we simulate code that processes images asynchronously. We have a list of image names, and for each image, we will invoke setTimeout() as a mock asynchronous operation.

const commonContinuation = nextExample => {
  NOTE('Unordered async operations')

  const images = ['image1', 'image2', 'image3', 'image4']
  let numtasks = images.length

  const cont = () => {
    numtasks--
    if (numtasks) return // more tasks to complete
    console.log('All images processed')
    nextExample()
  }

  images.forEach(image => setTimeout(() => {
    console.log('Processed image ' + image)
    cont()
  }, randomTimeout()))
}

The order in which images are processed are not important here, so we schedule the processing for all four images at once (in quick succession). The I/O operations on the images supposedly take place in the background, more or less in parallel for all practical purposes. The callbacks are then put on the message queue in the order in which the processing finishes.

The cont() callback basically postpones continuation until all images are processed. It does so by keeping track of how many images are still processing (the numtasks variable). Once there are no more images, it continues to the next example.

Sequential: finish all asynchronous operations in specific order

In this case, the order of the operations matters, perhaps because we want the asynchronous operations to depend on each other.

We will write an example of some code that simulates retrieving a value from a database, and then uses that value to read a file whose filename matches the value, and then sends the file contents to a server. Of course, we won't actually do all these things, but we'll use setTimeout() to simulate.

const asyncSequence = nextExample => {
  NOTE('Ordered async operations')

  let tasks = []

  const next = (val) => {
    if (tasks.length) {
      tasks.shift()(val, next)
    } else {
      console.log('Last task complete')
      nextExample()
    }
  }

  const getValue = (query, callback) => {
    setTimeout(() => {
      console.log('Retrieved value from database with query ' + query)
      callback('foo')
    }, randomTimeout())
  }

  const readFile = (name, callback) => {
    setTimeout(() => {
      console.log('Read file ' + name + '.csv')
      callback(name + '.csv contents')
    }, randomTimeout())
  }

  const sendData = (data, callback) => {
    setTimeout(() => {
      console.log('Sending ' + data)
      callback()
    }, randomTimeout())
  };

  tasks.push(getValue)
  tasks.push(readFile)
  tasks.push(sendData)

  next('name == foo')
}

First of all, we cheated a bit. Since we were free to design our own API for the three functions, we made it so that they can neatly be chained. We made sure that they all take a value as their first argument, and a callback as their second. We also made sure that the callback is always passed a single argument. This allowed us to write a driver function called next(), which keeps the chain going.

The driver uses a list of tasks to organize the ordering. It receives a value as its only argument, and grabs the first item in the task list, then calls the task function passing in the value it received, and itself as a callback. By passing itself to tasks, next() ensures that the control over the flow is returned to it after each task. The task function will invoke next() again, passing the value it calculated, and the loop continues until we are out of tasks. (And yeah, this is a recursive function, in case you were wondering.)

The rest of the code is pretty straightforward, so I won't go into it.

When working with 3rd party APIs, you should be keenly aware of all the functions that are involved, and their signatures. Wrap them as necessary to produce chainable calls like we have in our example. Not taking the time to do this will lead to spaghetti that is very difficult to manage.

Pyramid of doom

In the previous section, you have seen a neat way to string asynchronous operations together. This section is dedicated to the wrong way to do continuation passing. Although the code in the example works, you will see how it can be a very bad idea.

A common term for code that looks like this is the 'pyramid of doom' or 'callback hell'.

const pyramidOfDoom = nextExample => {
  NOTE('Pyramid of doom demo')

  let x = 1

  setTimeout(() => {
    x++
    console.log('1: x ===', x)
    setTimeout(() => {
      x = x * 2
      console.log('2: x ===', x)
      setTimeout(() => {
        x = x / 3
        console.log('3: x ===', x)
        setTimeout(() => {
          x += 2
          console.log('4: x ===', x)
          nextExample()
        }, randomTimeout())
      }, randomTimeout())
    }, randomTimeout())
  }, randomTimeout())
}

Due to indentation, we get progressively more indented lines which form something that looks like a right-pointing triangle. Hence the name 'pyramid'. Another appropriate term for this is 'unreadable'.

Even in this relatively simple example, the code is pretty hard to follow, but the more lines you have between two levels of indentation, the harder it becomes. Therefore, this is a pattern that you want to avoid at all costs.

The main motivation behind writing this kind of code is usually that we always have access to x via the closure. As we have seen in the previous section, passing the values around using a driver function is not exactly nuclear science (albeit it does require a bit of craftiness), and there is, therefore, no reason for writing this kind of code. We show it here because it used to be quite common, and you may still run into such code from time to time.

Promises

We won't go into promises too much here, because they definitely deserve a module of their own. But we'll still mention them because they are currently the most obvious alternative to continuation passing.

Promises are objects that wrap asynchronous operations, and provide an API for continuation. Here we will redo the example with ordered asynchronous operations using Promises, and I will then point you to the Mozilla article on Promises.

const promiseSequence = nextExample => {
  NOTE('Ordered async operations with promises')

  const getValue = query => {
    return new Promise(resolve => {
      setTimeout(() => {
        console.log('Retrieved value from database with query ' + query)
        resolve('foo')
      }, randomTimeout())
    })
  }

  const readFile = name => {
    return new Promise(resolve => {
      setTimeout(() => {
        console.log('Read file ' + name + '.csv')
        resolve(name + '.csv contents')
      }, randomTimeout())
    })
  }

  const sendData = data => {
    return new Promise(resolve => {
      setTimeout(() => {
        console.log('Sending ' + data)
        resolve()
      }, randomTimeout())
    })
  };

  getValue('name == foo')
    .then(readFile)
    .then(sendData)
    .then(() => {
      console.log('Last task done')
      nextExample()
    })
}

You can already see that this looks much more promising than the continuation passing style. Let's break it down quickly.

The Promise constructor takes a function called executor, which will perform some asynchronous operation. This function takes two arguments. The first argument is a resolution callback, which the executor will call if the asynchronous operation succeeds. The other argument is a rejection callback, which is called when the asynchronous operation fails. We did not use the latter in the example, and it is not strictly needed (although you will usually want to use it).

When the resolution callback is called, the promise object is said to be 'resolved'. When a promise is resolved, it is resolved to a value that was passed to the resolution callback in the executor. Conversely, when rejection callback is called, the promise object is 'rejected' (a promise way of saying 'throwing an exception'). A rejected promise can have a 'reason' for rejection, which is a value (usually an exception) that was passed to the rejection callback by the executor.

Although not important or this example, a promise can only be resolved or rejected once. Once it is resolved, any calls to resolution or rejection callbacks in the executor are ignored.

The promise object has several properties, of which one is the then() function. This function accepts a callback, which is called with the value passed to the resolution callback. The callback function can either return a value, in which case the a new promise is returned which is resolved to the callback's return value, or it can return a new promise, in which case the original promise will take on the properties of the new promise.

In our example, we use the latter mechanism. Each of our asynchronous functions return a promise. The first function, getValue() is invoked directly, but the other two are passed into then() function as callbacks. Since they return promises, we can further chain the then() calls to keep the train moving. The last then() is called when sendData() promise resolves, which completes the sequence. The return value of each asynchronous function propagates to the net one through chaining the then() calls.

In one of the future modules, I will show some other promise patterns, but meanwhile feel free to peruse the Mozilla documentation.

The async library

Because working with asynchronous code can be quite hard in real life, the async library written by Caolan McMahon become quite popular among NodeJS users. This library allows you to manage asynchronous code in various ways that go far beyond the scope of this module.

Below is the example of running this module as a sequence:

// Execute examples
async.series([
  blockRestaurant,
  deferRestaurant,
  nextTickDemo,
  separateStack,
  syncWorkflow,
  asyncWorkflow,
  commonContinuation,
  asyncSequence,
  pyramidOfDoom,
  promiseSequence
])

// Utility function for random timeouts
function randomTimeout() {
  return Math.floor(100 + Math.random() * 200);
}
